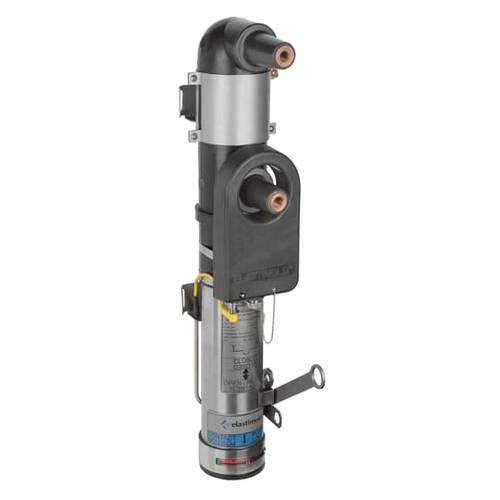

ABB - Installation Products MVI1-21-15A-66-320 15kv 1ph M-vac Int (20/32) 600/600
$79,746.37
ABB - Installation Products #: MVI1-21-15A-66-320
SKU: ABBIMVI1-21-15A-66-320
UPC: 783786028665
SKU: ABBIMVI1-21-15A-66-320
UPC: 783786028665
| Special Features: | EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition |
| Application: | Make, Carry and Automatically Interrupt Currents |
| Standard: | ANSI C37.60, IEEE 386, ANSI C57.12.28 |
| Amperage Rating: | 600 A |
| Material: | EPDM Rubber Insulation |
| Operating Temperature: | -40 to +65 C |
| Voltage Rating: | 15 kV |
| Type: | Molded Vacuum Interrupter - Single Phase |
| Length: | 30-5/8 in , 778 mm |
| Phase: | Single Phase |
