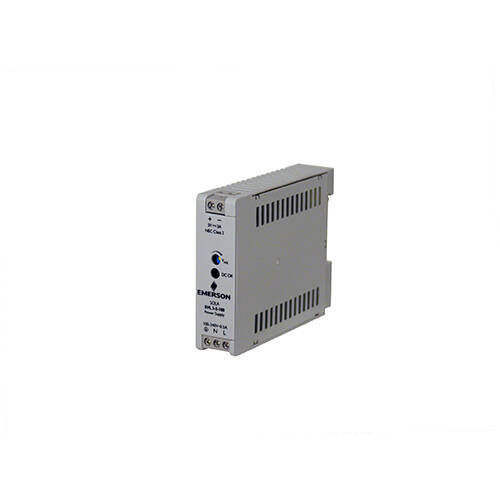

SolaHD 5100 15W 5V DIN PS 85-264VAC
$43.67
SolaHD #: 5100
SKU: SOLA5100
UPC: 783472873173
SKU: SOLA5100
UPC: 783472873173
| Length: | 3.52 in |
| Amperage Rating: | 3 A |
| Mounting: | DIN Rail |
| Height: | 2.95 IN |
| Fuse Rating: | Internally Fused |
| Application: | Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines; |
| Enclosure: | To be installed in an enclosure |
| Environmental Conditions: | To be installed in a controlled environment |
| Type: | SVL Essential Din Rail Series |
| Cable Size: | Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors |
| Material: | Plastic |
| Special Features: | Universal Input; Convection cooling; DC OK LED; NEC Class 2 output; Protection: short circuit, over voltage, overload, over temperature; Two year warranty |
| Standard: | UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme, NEC Class 2 |
| Efficiency: | 79 |
| Voltage Rating: | 5 |
| Wattage: | 15 W |
