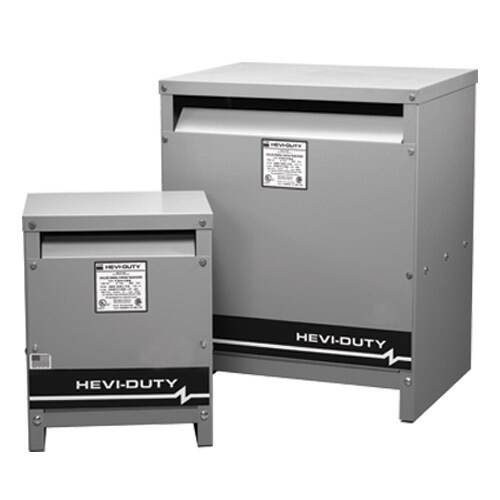

SolaHD 0SCU 30KVA 480D-208Y CU
$3,578.86
SolaHD #: 0SCU
SKU: SOLA0SCU
UPC: 783472148356
SKU: SOLA0SCU
UPC: 783472148356
| Height: | 28 in |
| Type: | Ventilated Distribution Transformer |
| Number Of Phases: | 3 |
| KVA Rating: | 30 kVA |
| Application: | Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment. |
| Frequency Rating, Minimum: | 60 Hz |
| Standard: | UL Listed E25872 |
| Cooling: | AA |
| Enclosure: | NEMA TYPE 1 |
| Number of Taps: | 7 |
| Primary Voltage: | 0.48 kV |
| Special Features: | DOE 10 CFR p431 - DOE 2016 Compliant |
| Efficiency: | 98.25 |
| Length: | 23 in |
| Secondary Voltage: | 0.208 kV |
| Insulation Class: | UL Class 220 DEG C |
