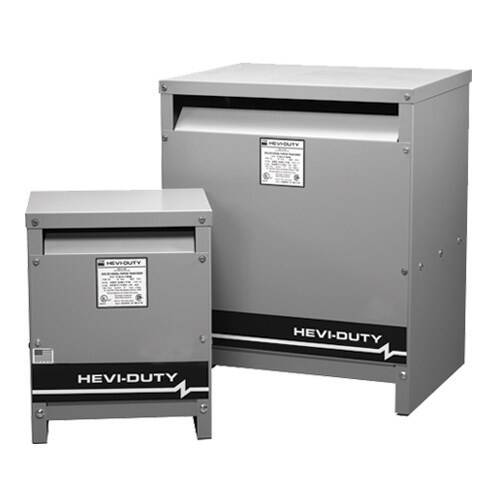

SolaHD 2H225S 225KVA 480D-208Y K-13 RATED
$15,856.88
SolaHD #: 2H225S
SKU: SOLA2H225S
UPC: 783472149315
SKU: SOLA2H225S
UPC: 783472149315
| Mounting: | Floor |
| Type: | Ventilated Distribution Transformer |
| Number Of Phases: | 3 |
| KVA Rating: | 225 kVA |
| K Factor: | 13 |
| Application: | Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment. |
| Insulation Class: | 220 DEG C |
| Frequency Rating, Maximum: | 60 Hz |
| Cooling: | AA |
| Enclosure: | NEMA TYPE 1 |
| Number of Taps: | 7 |
| Primary Voltage: | 0.48 kV |
| Secondary Voltage: | 0.208 kV |
| Height: | 46 in |
| Length: | 36 in |
| Efficiency: | 98.95 |
