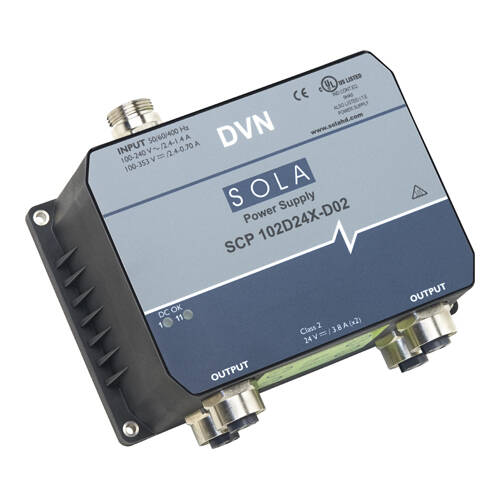

SolaHD 02D24X-D02 100Wx2 4-OUTP 24V EXT ENV DCPS
$1,095.01
SolaHD #: 02D24X-D02
SKU: SOLA02D24X-D02
UPC: 783472870691
SKU: SOLA02D24X-D02
UPC: 783472870691
| Length: | 4.73 IN |
| Height: | 1.8 IN |
| Number Of Receptacles: | 2 |
| Cable Size: | Use UL 758 wire rated min. 24 V, VW-1/FT-1, max. 3.05 m. |
| Enclosure: | IP66/67 Versatile Protection, UL50 Type4X |
| Fuse Rating: | Internally fused; fuses not replaceable. |
| Mounting: | Chassis Mounted Using Integral Mounting Tabs |
| Receptacle Configuration: | Input: 3-PIN IP67 molded plug (quick disconnect). Output: 4-PIN IP67 molded receptacle |
| Amperage Rating: | 3.8 A |
| Application: | Class 2 Listed power supply for stand alone applications. Automotive, packaging and automated distribution operations. |
| Efficiency: | >87% |
| Environmental Conditions: | -25 to 70 C |
| Special Features: | Can be mounted in any orientation without limitation. Approved for AD and DC universal input. Five year limited warranty. |
| Standard: | cULus Listed, Industrial Control Equipment, E61379, ITE, E137632, UL 508, CSA C22.2 No. 107.1, UL 60950-1/CSA C22.2 No. 60950-1, 2nd Edition, CE - Low Voltage Directive, IEC/EN60950-1, 2nd Edition |
| Type: | IP67 SCP-X Extreme Enviornment Series |
| Voltage Rating: | AC Range 85 - 264 Vac Universal Input; DC Range 100-353 Vdc |
