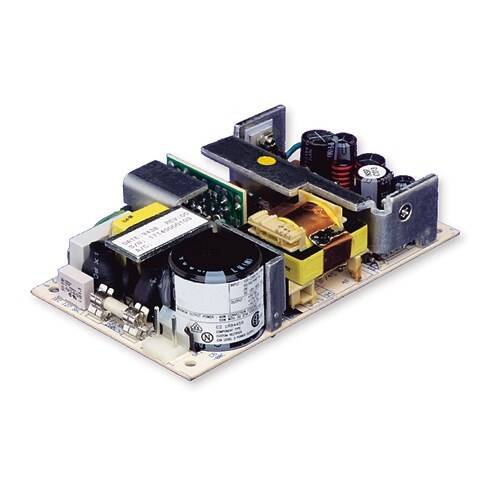

GLT65 SWITCHER PS 5V 24V 12V 60W
$0.00
#: GLT65
SKU: GLT65
UPC: 783472170524
SKU: GLT65
UPC: 783472170524
| Application: | For use in industrial and medical applications requiring standard footprint size and very high reliability |
| Frequency Rating: | 47-63, 400 +/- 40 HZ |
| Special Features: | Industry standard footprints, Universal input, Full power to 50 DEG C, High demonstrated MTBF, Automatic overvoltage protection, Overload protection, Built-in EMI Filtering, Derated operation to 70 DEG C, +/- 2%, regulation on main output, 250 VA and high |
| Type: | GL Series Single & Multi Output Switchers |
| Voltage Rating: | 90-264 Vac/127-300 Vdc |
| Efficiency: | 80%-85% Typical at full load |
| Height: | 1.3 IN |
| Length: | 4 IN |
| Width: | 2 IN |
| Standard: | Non-Medical: EN60950, UL UL60950 E132002, CSA 22.2-234 Level 3 LR53982C, CB Certificate and report; CE Mark (LVD), Medical: UL 2601; CSA 22.2 No. 601.1; EN 60601-29 |
