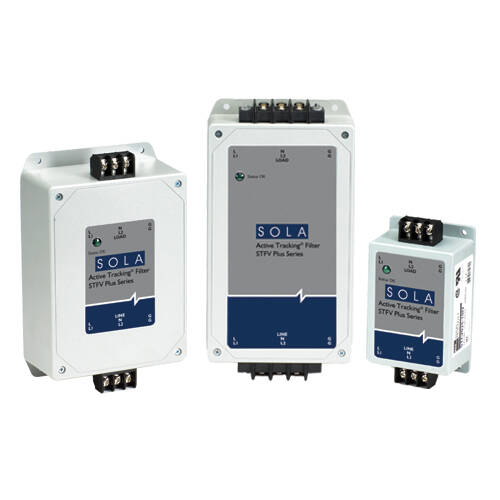

SolaHD 300-10N ACT TRC FLTR PLUS 30A 120V 1PH
$988.44
SolaHD #: 300-10N
SKU: SOLA300-10N
UPC: 783472700363
SKU: SOLA300-10N
UPC: 783472700363
| Operating Temperature: | minus 40 deg C to plus 60 deg C at full load. Derate Linearly to 60 percent at plus 70 deg C |
| Size: | 7.75 x 4.75 x 2.35 IN |
| Voltage Rating: | 120 Vac |
| Frequency Rating: | 50/60 HZ |
| Material: | High Impact Plastic Case, Vacuum Impregnated Magnetics, Epoxy Encapsulated |
| Amperage Rating: | 30 AMPS |
| Application: | Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment |
| Environmental Conditions: | Operating Humidity 0 to 95 percent Non-condensing |
| Response Time: | Less than 5 ns |
| Special Features: | Non degrading, series filter/TVSS technology for total durability. UL surge current capacity 25,000 amps. High impact plastic case, epoxy encapsulated enclosure. Transient protection in all modes (L-N, L-G, and N-G). Single phase applications up to 30 |
| Standard: | Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment |
| Type: | STFV Plus Series - Active Tracking Filtering with Surge Protection |
| Type of Indicators: | Less than 5 ns |
| Mounting: | Series/Panel Mount, Mounting Flange |
| Phase: | Single Phase (2 wire plus ground) |
| Connection: | #8 Screw, Minimum Wire Size 10 AWG |
| Short Circuit Rating: | Circuit Breaker Ampacity, Suggest 30.0, Maximum 37.5 Amps |
