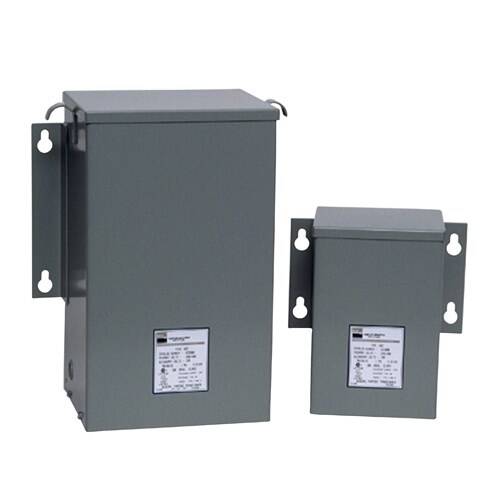

SolaHD 1500 1.5KVA 240X480-120 NEMA 4/12
$1,199.47
SolaHD #: 1500
SKU: SOLA1500
UPC: 783472570959
SKU: SOLA1500
UPC: 783472570959
| Number Of Phases: | 1 |
| Frequency Rating: | 50/60 HZ |
| Height: | 12 IN |
| Primary Voltage: | 240/480, 230/460, 220/440 Volt Primary |
| Secondary Voltage: | 120/115/110 Volt Secondary |
| Temperature Rating: | 80 DEG Temperature Rise under full load |
| Wattage: | 1 KVA |
| Application: | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| KVA Rating: | 1.5 |
| Length: | 7 IN |
| Special Features: | UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| Standard: | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Type: | HSZ Series Industrial Control Transformers |
| Width: | 10 IN |
| Enclosure: | NEMA 4/12 |
