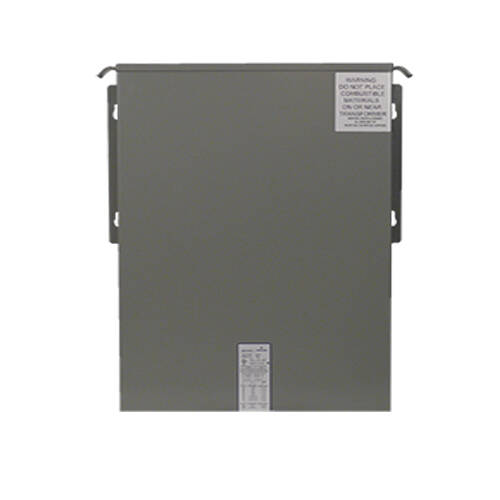

SolaHD 5AS 5KVA 240X480-120/240
$756.92
SolaHD #: 5AS
SKU: SOLA5AS
UPC: 783472111305
SKU: SOLA5AS
UPC: 783472111305
| Application: | SolaHD encapsulated transformer rated for harsh industrial environments |
| Frequency Rating: | 60 HZ |
| Output Voltage: | 120/240 Volt Secondary |
| Enclosure: | NEMA 3R |
| Number Of Phases: | 1 |
| Type: | Automation Transformers - Non-Ventilated 50 VA to 45 kVA |
| Temperature Rating: | 115 DEG C Temperature Rise Under Full Load |
| Special Features: | Rated for Hazardous Locations and Harsh Industrial Environments, Copper Lead Wire Terminations, UL Class 200 DEG C Insulation System |
| Standard: | UL (CANADA AND US), UL 1561 or 506. CSA |
| Height: | 12 IN |
| Length: | 7 IN |
| Width: | 10 IN |
| Maximum Input Current: | 20.8/10.4 AMP |
| Maximum Output Current: | 41.6/20.8 AMP |
| Wattage: | 5 KVA |
