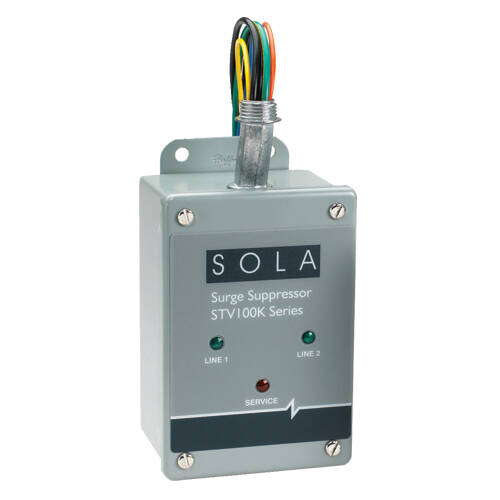

SolaHD 00K-23Y TVSS 230/400V 3PH WYE HARDWIRE
$989.39
SolaHD #: 00K-23Y
SKU: SOLA00K-23Y
UPC: 783472019748
SKU: SOLA00K-23Y
UPC: 783472019748
| Size: | 6.0 W x 4.0 D x 3.2 H |
| Operating Temperature: | -40 to 60 DEG C |
| Voltage Rating: | 208Y/120 V |
| Connection: | Parallel |
| Environmental Conditions: | 0 to 95% non condensing |
| Type of Indicators: | Red & Green LED, Audible Alarm |
| Mounting: | Flange |
| Application: | Distribution Panels ( |
| Special Features: | 100,000 amp peak current rating provides all mode protection against severe transients, Low clamping levels for more effective protection, 65 kAIC fault current fusing level provides safety and NEC conformance, LED status and audible alarms, Compact, rugg |
| Standard: | cULus Listed: UL 1449, 3rd Edition, type 2 locations, UL Listed: NEMA type 12 enclosure, CSA Listed: CSA C22.2 No. 8, CSA TI I-IIB, TI A-24, RoHS Compliant |
| Type: | STV 100 K Series Surge Protection Devices |
| Frequency Rating: | 47 - 63 HZ |
| Material: | Metal Enclosure, NEMA 12 |
| Phase: | 3 Wye |
