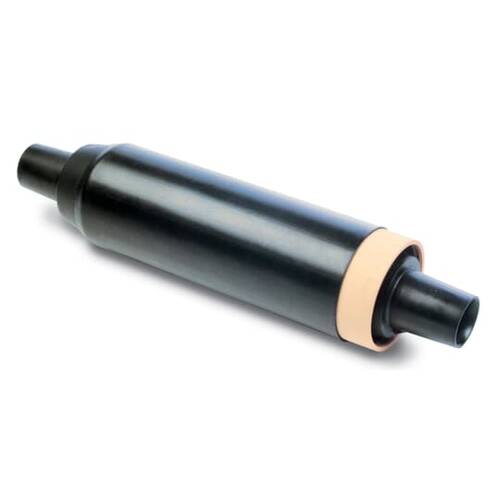

ABB - Installation Products 115TCJS44136P5FDBNB 115 Kv Splice - Cfe Mexico
$11,696.19
ABB - Installation Products #: 115TCJS44136P5FDBNB
SKU: ABBI115TCJS44136P5FDBNB
UPC: 783786786008
SKU: ABBI115TCJS44136P5FDBNB
UPC: 783786786008
| Number Of Conductors: | 2 |
| Color: | Black |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Type: | Transmission Cable Joint - Shieldbreak |
| Special Features: | Each Cable Joint is produced exactly to design, producing a quality not possible with field molding equipment or tape. Electrically tested in the factory to ensure consistent quality. Molding is done in the factory, reducing on-site time - no penciling |
| Application: | For use on Solid Dielectric Cables - providing permanent, fully-shielded, fully submersible cable joints for direct burial or vault applications |
| Standard: | ANSI C119.4, Shield Test IEEE 592 |
| Temperature Rating: | 90 C |
| Conductor Range: | .901 to .935 in |
| Voltage Rating: | 115 kV |
