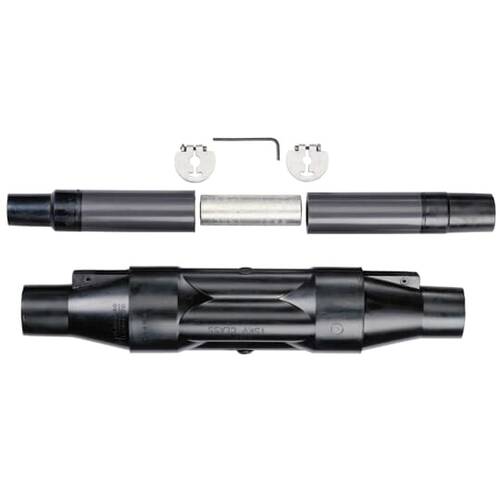

ABB - Installation Products 15PCJ2J2290-H2270 15kv Pcj Splice Cu-connector
$1,192.09
ABB - Installation Products #: 15PCJ2J2290-H2270
SKU: ABBI15PCJ2J2290-H2270
UPC: 075114303972
SKU: ABBI15PCJ2J2290-H2270
UPC: 075114303972
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 15 kV |
| Size: | 16-3/8 inch long |
| Conductor Range: | 4/0 STR AWG , 250 kcmil , 350 kcmil |
