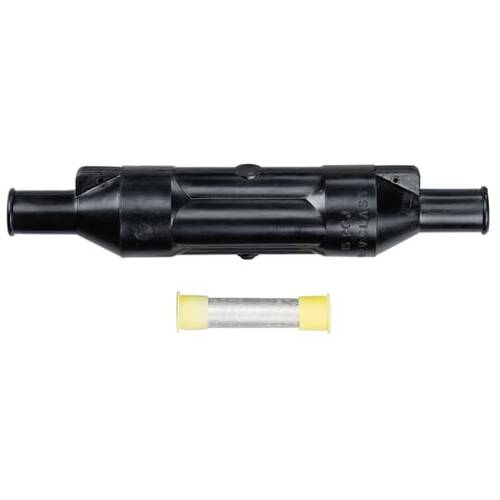

ABB - Installation Products 15PCJ1F1220-1210 15 Kv Pcj
$223.66
ABB - Installation Products #: 15PCJ1F1220-1210
SKU: ABBI15PCJ1F1220-1210
UPC: 783786532223
SKU: ABBI15PCJ1F1220-1210
UPC: 783786532223
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Size: | 14-3/8 inch long |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 15 kV |
| Conductor Range: | #3 STR AWG , #2 SOL AWG , #2 STR AWG , #1 SOL AWG |
