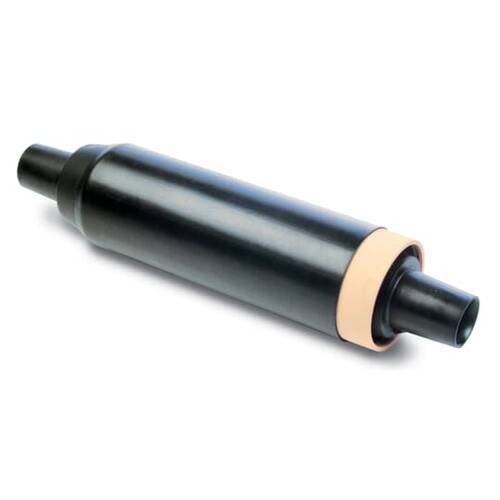

ABB - Installation Products 69TCJN43246P3LABNN 69 Tcj Splice
$11,328.72
ABB - Installation Products #: 69TCJN43246P3LABNN
SKU: ABBI69TCJN43246P3LABNN
UPC: 075114164658
SKU: ABBI69TCJN43246P3LABNN
UPC: 075114164658
| Number Of Conductors: | 2 |
| Color: | Black |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Special Features: | Each Cable Joint is produced exactly to design, producing a quality not possible with field molding equipment or tape. Electrically tested in the factory to ensure consistent quality. Molding is done in the factory, reducing on-site time - no penciling |
| Application: | For use on Solid Dielectric Cables - providing permanent, fully-shielded, fully submersible cable joints for direct burial or vault applications |
| Standard: | ANSI C119.4, Shield Test IEEE 592 |
| Voltage Rating: | 69 kV |
| Temperature Rating: | 90 C |
| Type: | Transmission Cable Joint - Non-Shieldbreak |
| Conductor Range: | 1.328 to 1.377 in |
