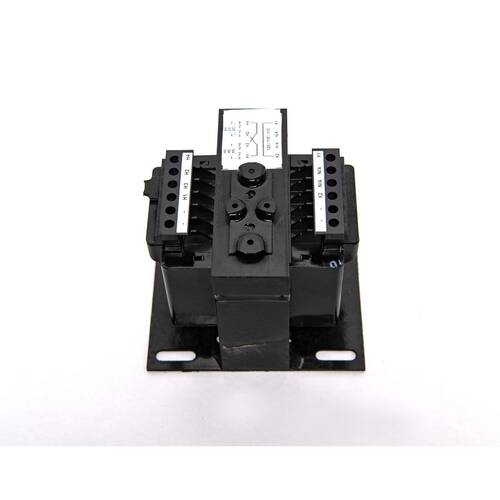

Acme Electric TB250N014 ICT .250KVA 240X480 - 120X240
$0.00
Acme Electric #: TB250N014
SKU: ACMETB250N014
UPC: 047503012000
SKU: ACMETB250N014
UPC: 047503012000
| Construction: | Encapsulated |
| FEATURES - Bullets: | Encapsulated design protects core & coil assembly from potentially damaging contaminants;Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency;Integrally molded terminal blocks with isolation barriers to prevent arc over;Fuse blocks kits available and easily adaptable;Series-parallel connecting links save wiring and labor costs;Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors;Copper windings on all groups;Heavy gauge steel mounting plate adapts to various mounting dimensions;Voltage regulation exceeds NEMA requirements;UL, and cUL Listed;Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards;Twenty year limited warranty |
| Certified Listed: | UL Listed;cUL Listed |
| FV_Certified Listed: | UL Listed;cUL Listed |
| Pallet Quantity: | 48 |
| Product Name: | Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts |
| Description - Short: | Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts |
| Description - Long: | Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts |
| Frequency Rating: | 50/60 HZ |
| Primary Voltage: | 240 X 480 V |
| Standard: | UL Listed;cUL Listed |
| Application: | Acmes TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transfo |
| Secondary Voltage: | 120X240 V |
