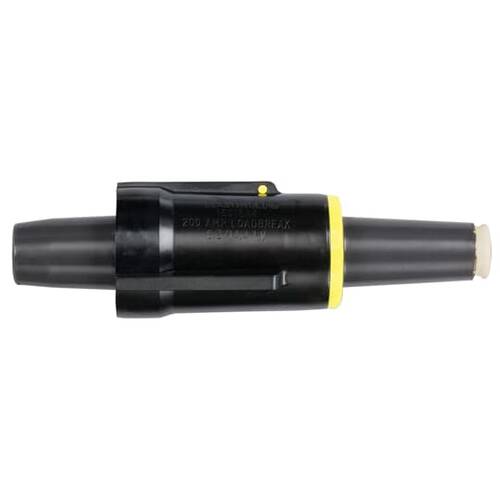

ABB - Installation Products 1601EA4 15kv Extended Bshg Insert
$267.19
ABB - Installation Products #: 1601EA4
SKU: ABBI1601EA4
UPC: 783786662968
SKU: ABBI1601EA4
UPC: 783786662968
| Material: | EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Standard: | ANSI/IEEE Standard 386 |
| Type: | Bushing Insert |
| Special Features: | 15kV, 200 Amp Loadbreak Rated. Longer than the standard 1601A4 Bushing Insert by 3.75 inches (95mm). Includes Hex-Broach for Torque Installation. Peroxide-cured Insulation and Jacket. Provision for Ground Wire Connection |
| Application: | Fully rated with a 15kV class, 200 Amp load break bushing interface. The load break bushing insert fits a standard ANSI bushing well interface and becomes the apparatus bushing interface for elbow connections |
| Size: | 11.00 inches (279.4 mm) long, 3.00 inches (76.2 mm) Diameter |
