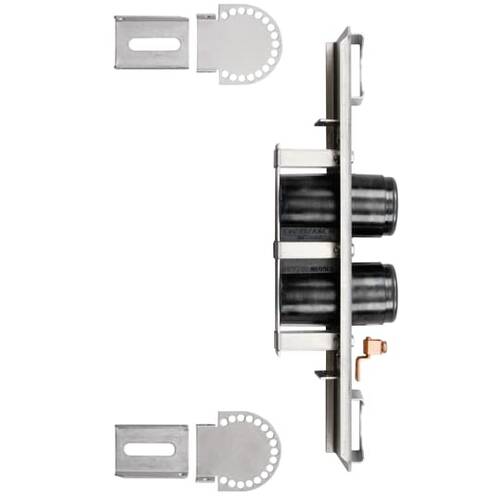

ABB - Installation Products K1601WJ2 2-point Well Junction
$1,013.80
ABB - Installation Products #: K1601WJ2
SKU: ABBIK1601WJ2
UPC: 783786361328
SKU: ABBIK1601WJ2
UPC: 783786361328
| Material: | EPDM Rubber with Stainless Steel Bracket |
| Standard: | ANSI/IEEE 386 |
| Temperature Rating: | -40 to +65 C |
| Application: | Fully shielded, fully submersible, separable insulated connectors designed for energized or de-energized operation. They are suitable for use on 15/25kV class systems |
| Type: | 2-Point Well Junction |
| Special Features: | 15/25kV, 200 Amp Loadbreak 2-Way Well Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors through |
| Size: | Bracket 19.00 inches (482.6 mm) long, 5.00 inches (127.0 mm) wide, |
