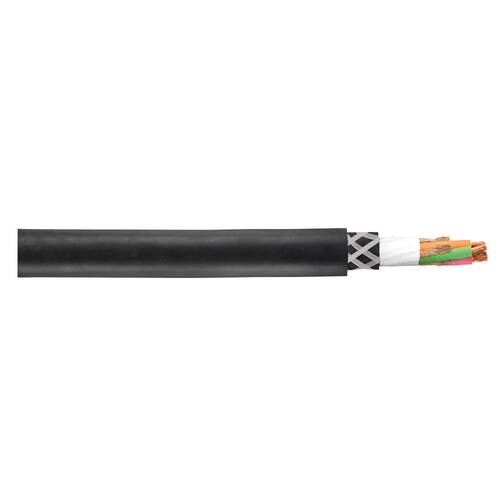

Prysmian Group 02806.99.01 12/6 CPE D RL CRD BLK
$0.00
Prysmian Group #: 02806.99.01
SKU: PRYS02806.99.01
UPC: 079407421985
SKU: PRYS02806.99.01
UPC: 079407421985
| _Jacket Color: | Black |
| _Conductor: | 6 |
| _Conductor Stranding: | 65/30 |
| _Standards: | RoHS Compliant Passes MSHA Flame Test Additional rating available upon request Other sizes and numbers of CNDTRs available upon request |
| Voltage Rating: | 600 |
| Conductor Material: | Fully annealed stranded bare copper |
| Temperature Rating: | 90C |
| Conductor Size: | 12 |
| Length: | 1 FT |
| Insulation Material: | Premium-grade, color-coded 90C EPDM |
| Application: | INDL and LT- to MED-DTY mining applications HD SVC as PWR SPLY CBL AC SYSs (GRNDD and unGRNDD) HD and LG SVC life applications Mobile and PORT electrical equipment MOTR and battery leads Wet or dry locations in underground mines in accordance with S |
| Jacket Material: | CPE |
| Special Features: | Withstands severe environmental conditions Indent-printed for easy identification Withstands exposure to oil, acid, alkalies, HT, moisture and most chemicals FLEX stranding Excellent impact, crush and tear resistance Sunlight-RST Reinforced jacket f |
| Weight: | 0.4089 L |
| Amperage Rating: | 16 |
