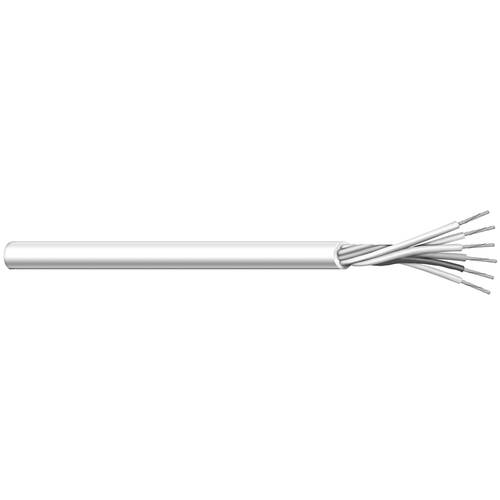

Prysmian Group C2420A.18.10 5C/18 16/30TC UNSH TYPE CM, 500' Spool
$0.00
Prysmian Group #: C2420A.18.10
SKU: PRYSC2420A.18.10
UPC: 079407204199
SKU: PRYSC2420A.18.10
UPC: 079407204199
| _Jacket Color: | Gray |
| _Compliances: | NEC Article 800 Type CM (UL: 75C) UL Style 2464 (UL: 80C, 300V) UL Style 2576 (UL: 80C, 150V) CSA CMG (CSA: 60C) RoHS Compliant Directive 2002/95/EC Designed to meet UL 70,000 BTU Vertical Tray Flame Test Passes CSA CMG Flame Test |
| Conductor Size: | 18 |
| Jacket Material: | PVC |
| Number Of Conductors: | 5 |
| Length: | 500 |
| Insulation Material: | Premium-grade, color-coded PVC |
| Application: | Public address systems Intercoms Internal telephones Remote control circuits Suitable for EIA RS-232 applications Suggested voltage rating: 300 volts |
| Conductor Material: | Fully annealed tinned copper |
| Weight: | 0.05 |
| Special Features: | NEC Article 800 Type CM (UL: 75C) UL Style 2464 (UL: 80C, 300V) UL Style 2576 (UL: 80C, 150V) CSA CMG (CSA: 60C) RoHS Compliant Directive 2002/95/EC Designed to meet UL 70,000 BTU Vertical Tray Flame Test Passes CSA CMG Flame Test |
