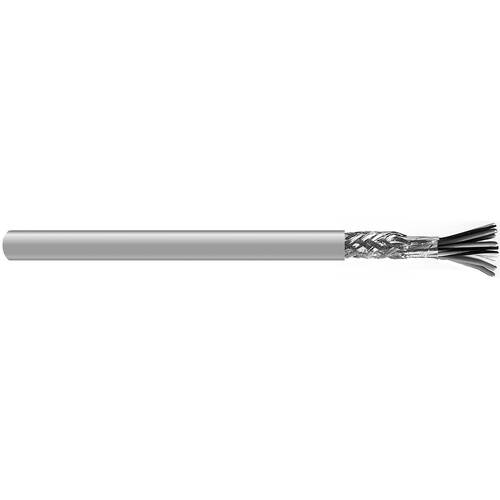

General Cable C0977A.41.10 9C/22 7/30TC FL/BRD SH CM
$0.00
General Cable #: C0977A.41.10
SKU: PRYSC0977A.41.10
UPC: 079407047628
SKU: PRYSC0977A.41.10
UPC: 079407047628
| Shield: | Flexfoil |
| Temperature Rating: | (-20C to +80C) |
| Jacket Material: | PVC |
| Application: | Computers; industrial equipment; data transmission; control circuits; suitable for EIA RS-232 applications; suggested voltage rating: 300 volts |
| Braid: | tinned copper |
| Color: | Gray |
| Conductor Material: | fully annealed stranded tinned copper |
| Conductor Size: | 22 AWG |
| Insulation Material: | Premium-grade, color-coded S-R PVC |
| NEMA Color: | Gray |
| Special Features: | Braid shield provides good flexibility; superior shielding where noise rejection is critical; assists system designers in meeting FCC Docket 20780 demands |
| Strands: | 7/30 |
| Number Of Conductors: | 9 |
| Outside Diameter: | 0.272 in |
| Standard: | NEC Article 800 Type CM; UL Style 2464; CSA CMG; RoHS Compliant Directive 2002/95/EC; Designed to meet UL 70,000 BTU Vertical Tray Flame Test; passes CSA CMG Flame Test |
