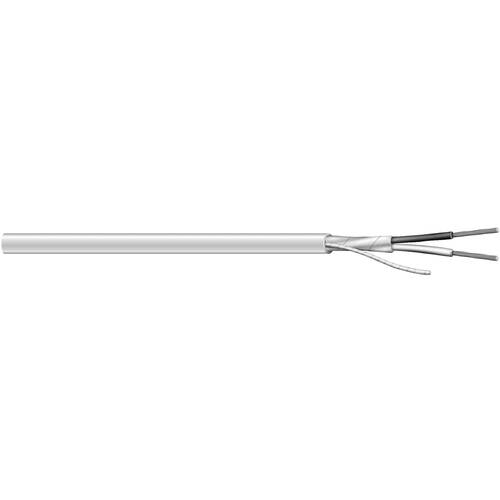

General Cable E2008S.18.10 8C/22 7/30BC OAS CMR/CL3R, 500' Spool
$0.00
General Cable #: E2008S.18.10
SKU: PRYSE2008S.18.10
UPC: 079407830862
SKU: PRYSE2008S.18.10
UPC: 079407830862
| _Compliances: | NEC Article 725 Type CL3R (UL: 75C, 150V) NEC Article 800 Type CMR (UL: 75C, 300V) RoHS Compliant Directive 2002/95/EC California State Fire Marshall Approved |
| _Jacket Color: | Gray |
| Conductor Size: | 22 |
| Insulation Material: | Premium-grade, color-coded S-R PVC |
| Jacket Material: | Premium-grade PVC |
| Length: | 500 |
| Conductor Material: | Stranded bare copper |
| Weight: | 0.03 |
| Number Of Conductors: | 8 |
| Application: | Power-limited control circuits Wiring of the following systems: Intercom Security Audio Background music Suggested voltage rating: 300 volts |
| Special Features: | NEC Article 725 Type CL3R (UL: 75C, 150V) NEC Article 800 Type CMR (UL: 75C, 300V) RoHS Compliant Directive 2002/95/EC California State Fire Marshall Approved |
