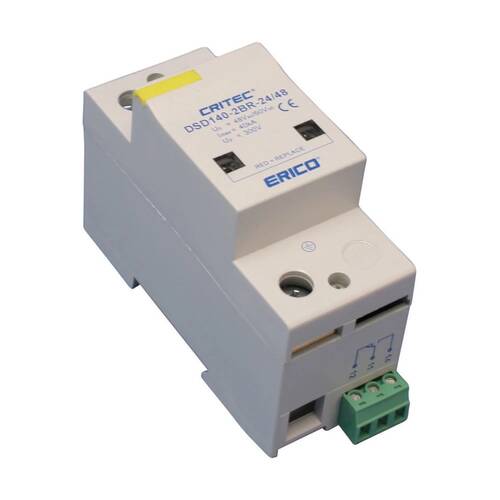

nVent DSD1402BR24/48 DC Surge Diverter
$0.00
nVent #: DSD1402BR24/48
SKU: NVENDSD1402BR24/48
UPC: 782856524748
SKU: NVENDSD1402BR24/48
UPC: 782856524748
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | MOV with thermal disconnect |
| Module Width: | 2 M |
| Status Indication: | Mechanical flag |
| Temperature: | -40-176 |
| Frequency: | 0-60 |
| Remote Contacts: | Yes |
| Protection Modes: | Common |
| Short Circuit Current Rating (SCCR): | 25 |
| Nominal Discharge Current (In): | 20 kA 8/20 s |
| Voltage Protection Level (Up), L-N: | 280 V @ 3 kA |
| Max Continuous Operating Voltage (Uc): | 60 VAC |
| Voltage Protection Level (Up), + to - @ In: | 600 |
| Max Discharge Current (Imax), Per Mode: | 40 kA 8/20 s |
| Application: | Surge Protection; Power Connections |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Width: | 36-36 |
| Type: | Surge Diverters |
| Standard: | CE, NOM |
