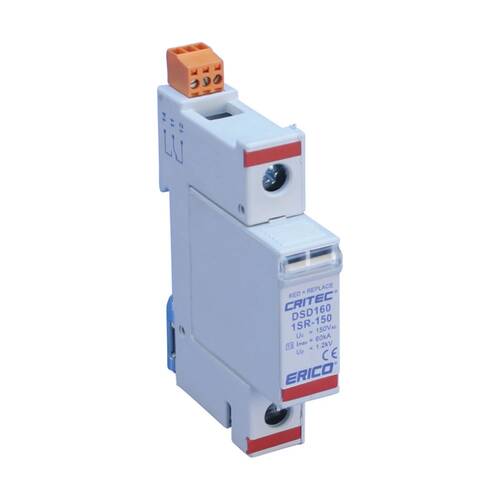

nVent DSD1601SR150 DIVERTER,SURGE,150V,60KA,1 MODE,DSD,ALAR
$0.00
nVent #: DSD1601SR150
SKU: NVENDSD1601SR150
UPC: 782856470397
SKU: NVENDSD1601SR150
UPC: 782856470397
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Max Continuous Operating Voltage (Uc): | 150 VAC |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | MOV with thermal disconnect |
| Protection Modes: | Single |
| Nominal System Voltage (Un): | 110 - 120 V |
| Status Indication: | Mechanical flag |
| Module Width: | 1 M |
| Frequency: | 0-60 |
| Remote Contacts: | Yes |
| Short Circuit Current Rating (SCCR): | 25 |
| Temperature: | -40-80 |
| Voltage Protection Level (Up): | 1000 V @ 25 kA |
| Replacement Module: | DSD1601SR150M |
| Application: | Surge Protection; Power Connections |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Type: | Surge Diverters |
| Width: | 18-18 |
