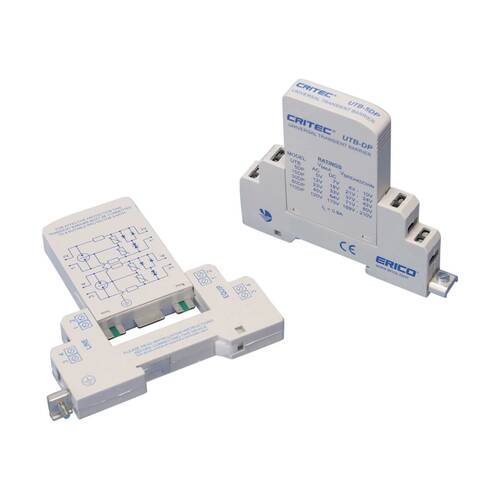

nVent UTB30DPS UTB, COMBINED, 30V, 800MA, 12/24V, 2A
$0.00
nVent #: UTB30DPS
SKU: NVENUTB30DPS
UPC: 782856622222
SKU: NVENUTB30DPS
UPC: 782856622222
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Connection, Stranded: | #18 min |
| Protection Modes: | Common |
| Technology: | Gas Discharge Tube (GDT) |
| Max Discharge Current (Imax), Per Mode: | 15 kA 8/20 s |
| Temperature: | -4-149 |
| Certification Details: | UL 497B |
| Voltage Protection Level (Up), L-L: | 220 V @ 3 kA |
| Max Continuous Operating Voltage (Uc): | 48 VAC |
| Replacement Module: | UTB30DPSM |
| Nominal System Voltage (Un): | 24 - 48 VAC |
| Loop Resistance: | 0-0 |
| Rated Load Current (IL): | 5 |
| Application: | Power Connections; Surge Protection |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Type: | Universal Transient Barriers |
| Width: | 12-12 |
| Standard: | UR, CE |
| Depth: | 85-85 |
