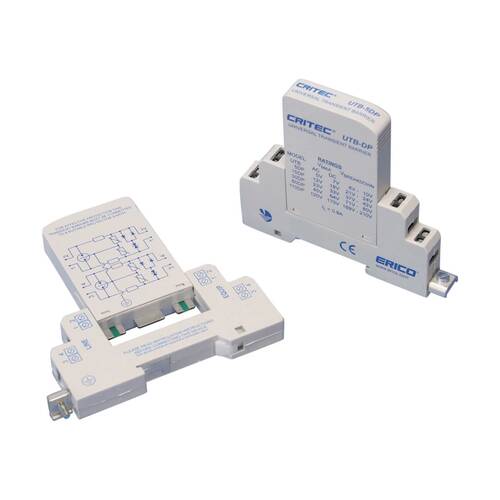

nVent UTB30DP Universal Transient Barrier
$0.00
nVent #: UTB30DP
SKU: NVENUTB30DP
UPC: 782856622192
SKU: NVENUTB30DP
UPC: 782856622192
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Protection Modes: | Common |
| Technology: | Gas Discharge Tube (GDT) |
| Temperature: | -20-65 |
| Max Continuous Operating Voltage (Uc): | 23 VAC |
| Voltage Protection Level (Up), L-L: | 44 V @ 3 kA |
| Max Discharge Current (Imax), L+L-PE: | 20 kA 8/20 s |
| Certification Details: | UL 497B |
| Nominal System Voltage (Un): | 10 - 21 VAC |
| Frequency: | 2-2 MHz |
| Loop Resistance: | 0.6-0.6 |
| Rated Load Current (IL): | 800 mA |
| Replacement Module: | UTB30DPM |
| Application: | Surge Protection; Power Connections |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 3.54-3.54 |
| Type: | Universal Transient Barriers |
| Width: | 12-12 |
| Standard: | UR, CE |
| Depth: | 85-85 |
