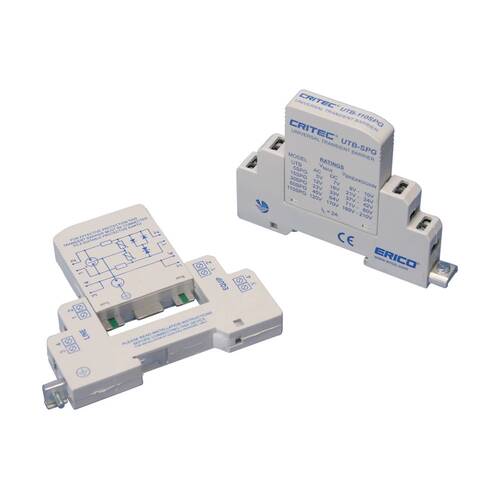

nVent UTB15SPG UTB, 1PR,PLUGABLE,5V,2A,20KA,ISO GND
$0.00
nVent #: UTB15SPG
SKU: NVENUTB15SPG
UPC: 782856622086
SKU: NVENUTB15SPG
UPC: 782856622086
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Connection, Stranded: | #18 min |
| Protection Modes: | Common |
| Technology: | Gas Discharge Tube (GDT) |
| Temperature: | -4-149 |
| Max Discharge Current (Imax), L+L-PE: | 20 kA 8/20 s |
| Certification Details: | UL 497B |
| Rated Load Current (IL): | 2 |
| Nominal System Voltage (Un): | 3 - 10 VAC |
| Voltage Protection Level (Up), L-L: | 25 V @ 3 kA |
| Max Continuous Operating Voltage (Uc): | 12 VAC |
| Frequency: | 1-1 MHz |
| Replacement Module: | UTB15SPGM |
| Application: | Power Connections; Surge Protection |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Type: | Universal Transient Barriers |
| Depth: | 72-72 |
| Width: | 12-12 |
| Standard: | UR, CE |
