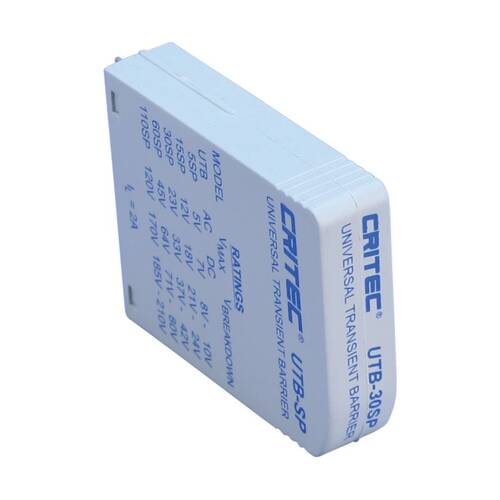

nVent UTB15SPM UTB REPLACEMENT MODULE FOR UTB15SP
$0.00
nVent #: UTB15SPM
SKU: NVENUTB15SPM
UPC: 782856622031
SKU: NVENUTB15SPM
UPC: 782856622031
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Protection Modes: | Common |
| Technology: | Gas Discharge Tube (GDT) |
| Loop Resistance: | 1-1 |
| Unit Weight: | 0.05-0.05 |
| Unit Weight (imperial) : | 0.050 lb |
| Temperature: | -20-65 |
| Max Discharge Current (Imax), L+L-PE: | 20 kA 8/20 s |
| Rated Load Current (IL): | 2 |
| Nominal System Voltage (Un): | 3 - 10 VAC |
| Voltage Protection Level (Up), L-L: | 25 V @ 3 kA |
| Max Continuous Operating Voltage (Uc): | 12 VAC |
| Width (Imperial) : | 0.470 in |
| Frequency: | 1-1 MHz |
| Application: | Power Connections; Surge Protection |
| Type: | Replacement Modules for Universal Transient Barriers |
| Width: | 12-12 |
| Height: | 1.7-1.7 |
| Depth: | 52-52 |
