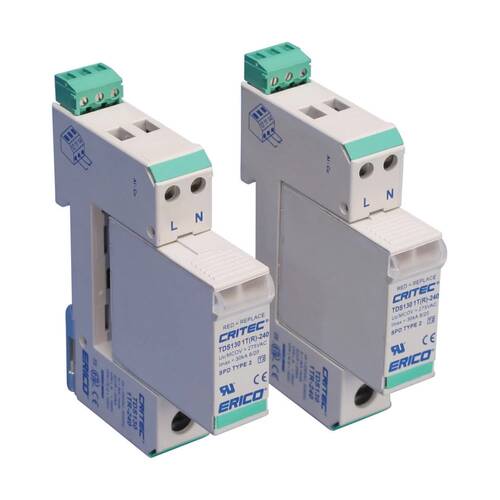

nVent TDS1301TR150 Compact surge protective device
$0.00
nVent #: TDS1301TR150
SKU: NVENTDS1301TR150
UPC: 782856621751
SKU: NVENTDS1301TR150
UPC: 782856621751
| Enclosure Rating: | IP 20 |
| Protection Modes: | L-N |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | TD technology with thermal disconnect |
| Max Continuous Operating Voltage (Uc): | 170 VAC |
| Status Indication: | Mechanical flag |
| Module Width: | 1 M |
| Remote Contacts: | Yes |
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B |
| Nominal System Voltage (Un): | 120 - 150 VAC |
| Frequency: | 0-100 |
| Certification Details: | UL 1449 Edition 5 Type 4CA |
| Stand-off Voltage: | 230 VAC |
| Replacement Module: | TDS130M150 |
| Voltage Protection Rating (VPR): | 800 V @ 3 kA L-N |
| Application: | Power Connections; Surge Protection |
| Type: | Transient Discriminating Surge Diverters |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Width: | 18-18 |
| Standard: | UR, cUR |
