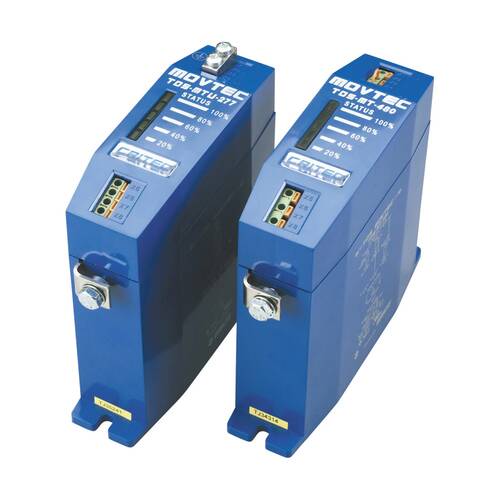

nVent TDSMT480 DIVERTER,SHUNT,ALARM,TDS MOVTEC,347-480V
$0.00
nVent #: TDSMT480
SKU: NVENTDSMT480
UPC: 782856475132
SKU: NVENTDSMT480
UPC: 782856475132
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | TD technology with thermal disconnect |
| Frequency: | 50-60 |
| Status Indication: | 5 segment LED bar graph per phase |
| Max Discharge Current (Imax), Per Mode: | 100 kA 8/20 s |
| Protection Modes: | Single |
| Max Operating Current: | 25 |
| Back-Up Overcurrent Protection: | 100 |
| Nominal Discharge Current (In), Per Mode: | 80 kA 8/20 s |
| Nominal System Voltage (Un): | 480 V |
| Voltage Protection Rating (VPR): | 1050 V @ 3 kA |
| Aggregate Surge Rating: | 200 |
| Temperature: | -35-55 |
| Application: | Surge Protection; Power Connections |
| Type: | Non-DIN Rail Surge Protection |
| Depth: | 140-140 |
| Width: | 45-45 |
| Height: | 5.91-5.91 |
