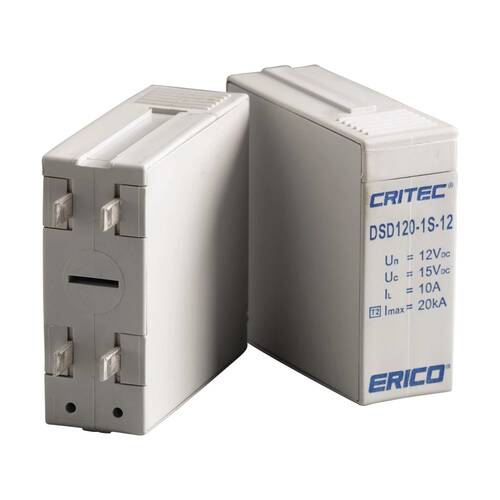

nVent DSD1201S12M DIVERTER, SURGE, DSD120-1S-12 MODULE
$0.00
nVent #: DSD1201S12M
SKU: NVENDSD1201S12M
UPC: 782856472681
SKU: NVENDSD1201S12M
UPC: 782856472681
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Status Indication: | Mechanical flag |
| Module Width: | 1 M |
| Temperature: | -40-176 |
| Frequency: | 0-60 |
| Max Continuous Operating Voltage (Uc): | 15 VDC |
| Technology: | Gas Discharge Tube (GDT) |
| Nominal System Voltage (Un): | 12 VDC |
| Unit Weight: | 0.15-0.15 |
| Unit Weight (imperial) : | 0.150 lb |
| Height (Imperial) : | 1.780 in |
| Max Discharge Current (Imax), Per Mode: | 20 kA 8/20 s |
| Nominal Discharge Current (In), Per Mode: | 10 kA 8/20 s |
| Width (Imperial) : | 0.710 in |
| Voltage Protection Level (Up): | 30 V @ 3 kA |
| Application: | Power Connections; Surge Protection |
| Width: | 18-18 |
| Height: | 45-45 |
| Depth: | 49-49 |
| Type: | Replacement Modules for Surge Diverters |
