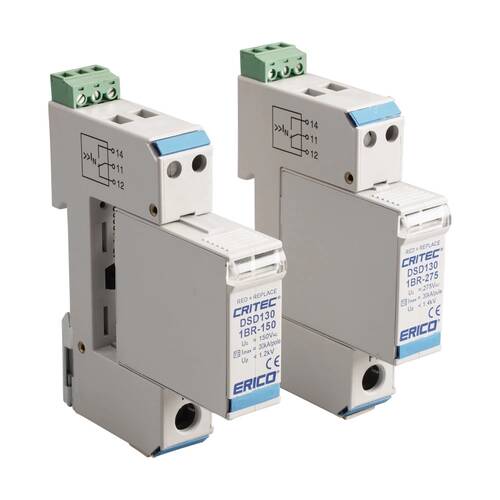

nVent DSD1301BR150 DIVERTER,SURGE,150V,30KA,1 MODE,DSD ALAR
$0.00
nVent #: DSD1301BR150
SKU: NVENDSD1301BR150
UPC: 782856472520
SKU: NVENDSD1301BR150
UPC: 782856472520
| Enclosure Rating: | IP 20 |
| Protection Modes: | L-N |
| Max Continuous Operating Voltage (Uc): | 150 VAC |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | MOV with thermal disconnect |
| Nominal System Voltage (Un): | 110 - 120 V |
| Status Indication: | Mechanical flag |
| Module Width: | 1 M |
| Distribution System: | TN-C |
| Remote Contacts: | Yes |
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B |
| Short Circuit Current Rating (SCCR): | 25 |
| Temperature: | -40-80 |
| Voltage Protection Level (Up), L-N @ In: | 1,200 |
| Voltage Protection Level (Up), L/N-PE @ In: | 600 |
| Application: | Surge Protection; Power Connections |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Type: | Surge Diverters |
| Width: | 18-18 |
