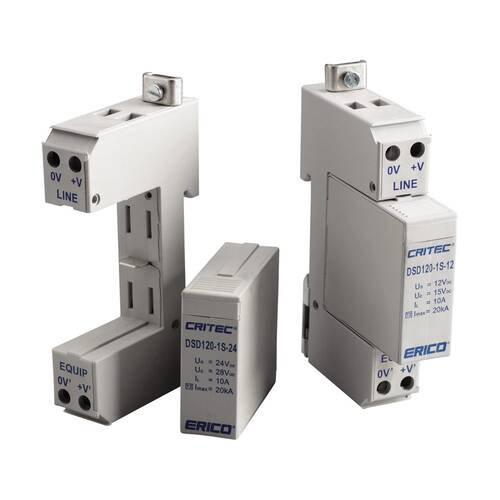

nVent DSD1201S12 DIVERTER,SURGE,12V,20KA,1 MODE,DSD
$0.00
nVent #: DSD1201S12
SKU: NVENDSD1201S12
UPC: 782856470298
SKU: NVENDSD1201S12
UPC: 782856470298
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Remote Contacts: | No |
| Module Width: | 1 M |
| Temperature: | -40-176 |
| Protection Modes: | Common |
| Voltage Protection Level (Up), L-L: | 30 V @ 3 kA |
| Replacement Module: | DSD1201S12M |
| Max Continuous Operating Voltage (Uc): | 15 VDC |
| Technology: | Gas Discharge Tube (GDT) |
| Nominal System Voltage (Un): | 12 VDC |
| Nominal Discharge Current (In): | 10 kA 8/20 s |
| Rated Load Current (IL): | 10 |
| Max Discharge Current (Imax): | 20 kA 8/20 s |
| Application: | Power Connections; Surge Protection |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Type: | Surge Diverters |
| Width: | 18-18 |
| Height: | 3.54-3.54 |
| Standard: | CE |
