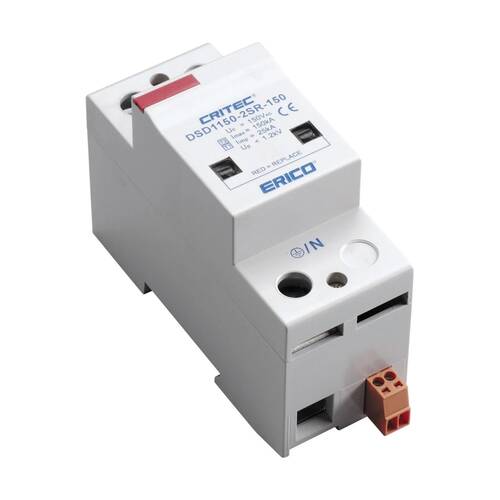

nVent DSD11502SR150 DIVERTER,150 KA SINGLE MODE,110-120 V UN
$0.00
nVent #: DSD11502SR150
SKU: NVENDSD11502SR150
UPC: 782856470274
SKU: NVENDSD11502SR150
UPC: 782856470274
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Max Continuous Operating Voltage (Uc): | 150 VAC |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | MOV with thermal disconnect |
| Module Width: | 2 M |
| Protection Modes: | Single |
| Nominal System Voltage (Un): | 110 - 120 V |
| Status Indication: | Mechanical flag |
| Temperature: | -40-176 |
| Frequency: | 0-60 |
| Remote Contacts: | Yes |
| Voltage Protection Level (Up): | 480 V @ 3 kA |
| Nominal Discharge Current (In): | 60 kA 8/20 s |
| Max Discharge Current (Imax): | 150 kA 8/20 s |
| Application: | Power Connections; Surge Protection |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Width: | 36-36 |
| Type: | Surge Diverters |
