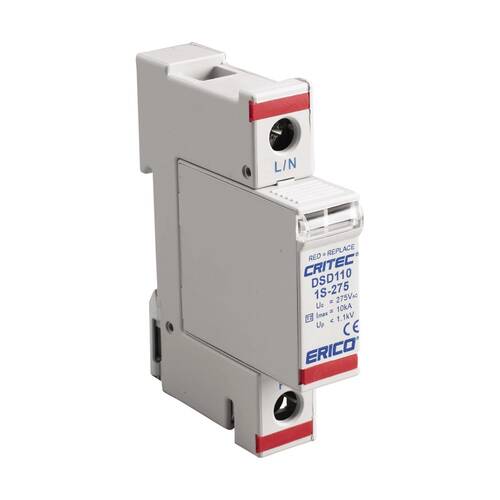

nVent DSD1101S275 DIVERTER,SURGE,275V,10KA,1 MODE,DSD
$0.00
nVent #: DSD1101S275
SKU: NVENDSD1101S275
UPC: 782856470250
SKU: NVENDSD1101S275
UPC: 782856470250
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Max Continuous Operating Voltage (Uc): | 275 VAC |
| Technology: | MOV with thermal disconnect |
| Remote Contacts: | No |
| Protection Modes: | Single |
| Status Indication: | Mechanical flag |
| Nominal System Voltage (Un): | 220 - 240 V |
| Module Width: | 1 M |
| Distribution System: | TN-C |
| Temperature: | -40-176 |
| Short Circuit Current Rating (SCCR): | 10 |
| Replacement Module: | DSD110M275 |
| Complies With: | IEC 61643-1 Class III |
| Voltage Protection Level (Up): | 1200 V @ 5 kA |
| Application: | Surge Protection; Power Connections |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Type: | Surge Diverters |
| Width: | 18-18 |
| Height: | 3.54-3.54 |
