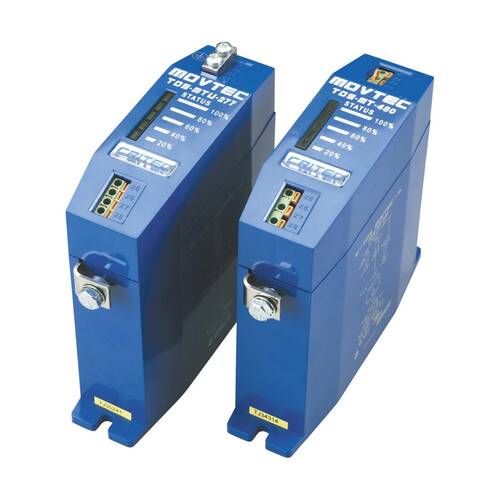

nVent TDSMT277 TDS MOVTEC 277V 100KA
$0.00
nVent #: TDSMT277
SKU: NVENTDSMT277
UPC: 782856440970
SKU: NVENTDSMT277
UPC: 782856440970
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | TD technology with thermal disconnect |
| Status Indication: | 5 segment LED bar graph per phase |
| Temperature: | -31-131 |
| Protection Modes: | Single |
| Certification Details: | UL 1449 Edition 3 Recognized Component Type 2 |
| Max Operating Current: | 25 |
| Max Continuous Operating Voltage (Uc): | 400 VAC |
| Nominal System Voltage (Un): | 230 - 277 V |
| Stand-off Voltage: | 480 V |
| Voltage Protection Rating (VPR): | 700 V @ 3 kA |
| Back-Up Overcurrent Protection: | 100 |
| Nominal Discharge Current (In), Per Mode: | 80 kA 8/20 s |
| Application: | Surge Protection; Power Connections |
| Type: | Non-DIN Rail Surge Protection |
| Standard: | UR, cUR, C-Tick |
| Depth: | 140-140 |
| Width: | 45-45 |
| Height: | 5.91-5.91 |
