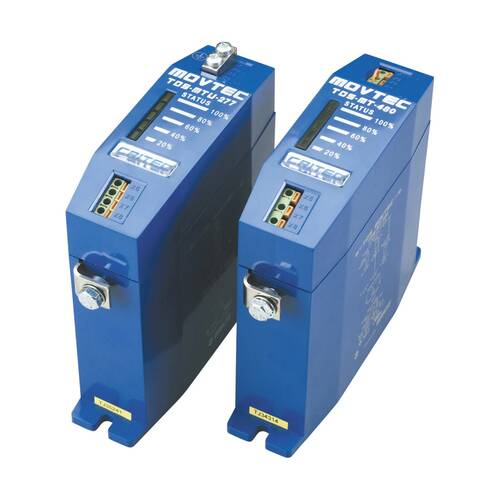

nVent TDSMT120 MOVTEC,TDS,100KA,100 TO 120V
$0.00
nVent #: TDSMT120
SKU: NVENTDSMT120
UPC: 782856440963
SKU: NVENTDSMT120
UPC: 782856440963
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | TD technology with thermal disconnect |
| Frequency: | 50-60 |
| Status Indication: | 5 segment LED bar graph per phase |
| Max Discharge Current (Imax), Per Mode: | 100 kA 8/20 s |
| Temperature: | -31-131 |
| Stand-off Voltage: | 240 V |
| Protection Modes: | Single |
| Nominal System Voltage (Un): | 110 - 120 V |
| Voltage Protection Rating (VPR): | 400 V @ 3 kA |
| Max Continuous Operating Voltage (Uc): | 170 VAC |
| Certification Details: | UL 1449 Edition 3 Recognized Component Type 2 |
| Max Operating Current: | 25 |
| Application: | Power Connections; Surge Protection |
| Type: | Non-DIN Rail Surge Protection |
| Standard: | UR, cUR, C-Tick |
| Height: | 150-150 |
| Depth: | 140-140 |
| Width: | 45-45 |
