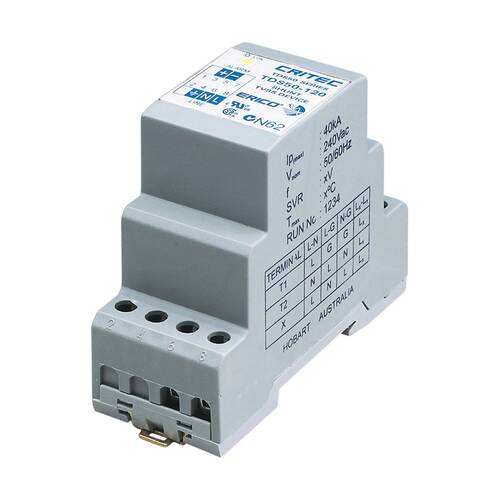

nVent TDS50240 DINLINE SPD,TDS,1PH,3M,20+20+10KA,240V
$0.00
nVent #: TDS50240
SKU: NVENTDS50240
UPC: 782856440437
SKU: NVENTDS50240
UPC: 782856440437
| Enclosure Rating: | IP 20 |
| Protection Modes: | L-N |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Status Indication: | LED |
| Frequency: | 50-60 |
| Nominal System Voltage (Un): | 240 VAC |
| Voltage Protection Rating (VPR): | 800 V @ 3 kA |
| Unit Weight: | 0.18-0.18 |
| Max Discharge Current (Imax), N-PE: | 10 kA 8/20 s |
| Max Discharge Current (Imax), L-N: | 20 kA 8/20 s |
| Max Discharge Current (Imax), L-PE: | 20 kA 8/20 s |
| Max Continuous Operating Voltage (Uc): | 340 VAC |
| Remote Contacts: | No |
| Module Width: | 2 M |
| Designed to Meet: | ANSI/IEEE C62.41.2 Cat A, Cat B, Cat C |
| Application: | Surge Protection; Power Connections |
| Type: | Transient Discriminating Surge Diverters |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Width: | 35-35 |
