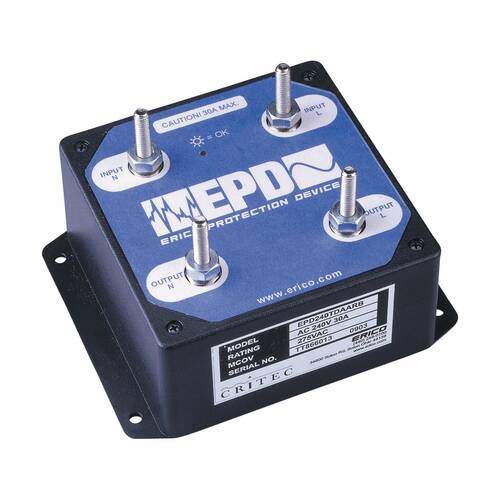

nVent EPD120TDAARB RAIL SECONDARY POWER SP,AC CIRCUITS,120V
$0.00
nVent #: EPD120TDAARB
SKU: NVENEPD120TDAARB
UPC: 782856475019
SKU: NVENEPD120TDAARB
UPC: 782856475019
| Nominal System Voltage (Un): | 120 V |
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Connection Type: | AAR Terminals |
| Protection Modes: | L-N |
| Max Continuous Operating Voltage (Uc): | 150 VAC |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | TD technology with thermal disconnect |
| Filtering: | -65 dB @ 100 kHz |
| Status Indication: | LED |
| Distribution System: | 1Ph 2W+G |
| Rated Load Current (IL): | 30 |
| Temperature: | -40-158 |
| Frequency: | 50-60 |
| Aggregate Surge Rating: | 20 |
| Application: | Power Connections; Surge Protection |
| Type: | Rail Power Surge Protection |
| Standard: | None |
| Height: | 2.375-2.375 |
| Depth: | 120.65-120.65 |
| Width: | 146-146 |
