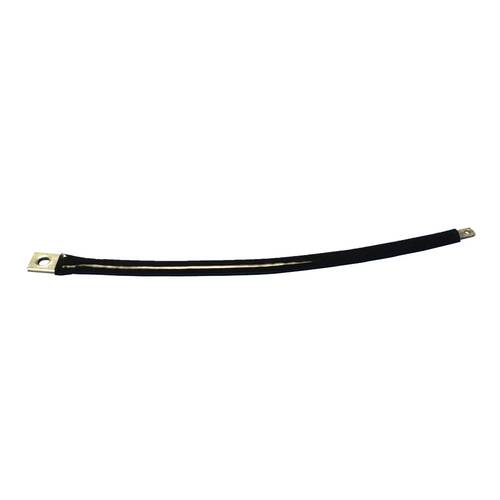

nVent 558591 Insulated Braided Cond. IBSHY32-565
$0.00
nVent #: 558591
SKU: NVEN558591
UPC: 782856919940
SKU: NVEN558591
UPC: 782856919940
Material: | Copper |
Wire Diameter: | 0.01 |
Complies With: | IEC 60439.1 |
Flammability Rating: | UL 1441 VW-1 |
Hole Size 1: | 0.26-0.26 |
D: | 0.2-0.2 |
Peak Short Circuit Current (Ipk): | 15 |
B: | 25-25 |
Typical Application Current Rating: | 160-160 |
C: | 0.12-0.12 |
Hole Size 2: | 0.41-0.41 |
Max Working Voltage, IEC (Ui): | 1,000 |
Cross Section: | 63.15 |
Working Temperature: | -60-250 |
Unit Weight: | 0.17-0.17 |
Type: | Flexible Power Braids and Shunts |
Application: | Power Connections |
Finish: | Tinned |
Length: | 565-565 |
