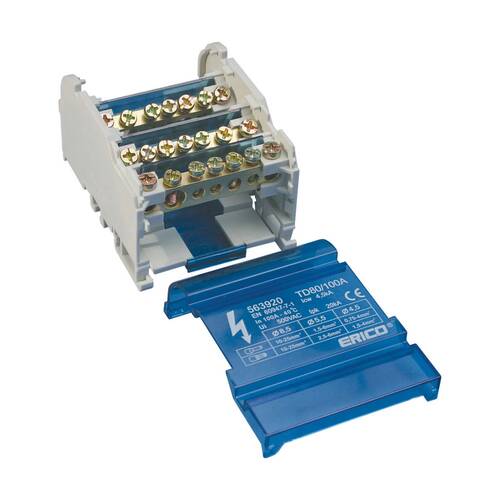

nVent 563920 Four Pole Distribution Block TD-80-100A
$0.00
nVent #: 563920
SKU: NVEN563920
UPC: 782856855767
SKU: NVEN563920
UPC: 782856855767
| Line Side Compact Stranded Wire Size: | 10 - 25 mm |
| Complies With: | IEC 60947-7-1 |
| Flammability Rating: | UL 94V-0 |
| Short Term Withstand Current (Icw) 1s: | 4.5 |
| Line Side Stranded Wire Size - Ferrule: | 10-25 |
| Load Side Number of Connections: | 6 |
| Line Side Number of Connections: | 1 |
| Max Current Rating, IEC: | 100 |
| Peak Short Circuit Current (Ipk): | 20 |
| Max Working Voltage, IEC (Ui): | 500 V |
| Load Side Compact Stranded Wire Size: | (3) 1,5 - 4 mm |
| Load Side Stranded Wire Size - Ferrule: | (3) 0,75 4 mm |
| Width (imperial) : | 2520 in |
| Height: | 3.54-3.54 |
| Unit Weight: | 0.46-0.46 |
| Number of Poles: | 4 |
| Type: | Compact Four Pole Distribution Blocks |
| Application: | Power Connections |
| Material: | Thermoplastic |
| Depth: | 50-50 |
| Width: | 64-64 |
