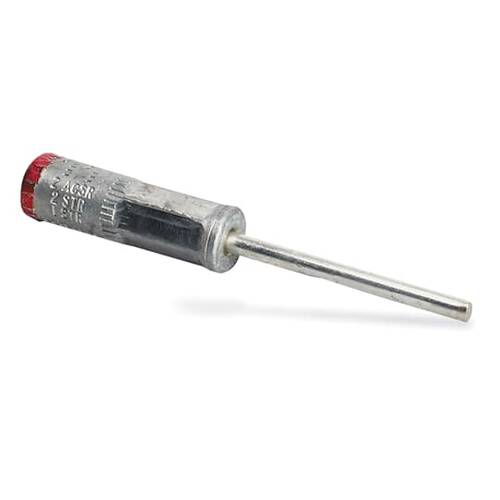

ABB - Installation Products PRS30N Comp Pin Term 266 Pigtail .500x8
$73.16
ABB - Installation Products #: PRS30N
SKU: ABBIPRS30N
UPC: 783786050468
SKU: ABBIPRS30N
UPC: 783786050468
| Voltage Rating: | 35 kV |
| Application: | Designed for use in joining Aluminum Secondaries and Services to Copper Transformer Bushings |
| End Connection: | Compression |
| Finish: | Tinplated Pigtail |
| Insulation: | None |
| Material: | Aluminum Sleeve, Pre-attached Copper Pigtail |
| Mounting: | None |
| Number Of Conductors: | 2 |
| Special Features: | Sleeves are Highly Conductive Aluminum. Pigtails are Solid Copper, Tin-Plated. Installed with Standard Tools and Dies. Prefilled with Oxide Inhibitor |
| Type: | Pigtail Compression Sleeve |
| Size: | Sleeve Length 5 inches |
| Conductor Size: | 266( 26/7) 366(18/1) ASCR AWG , 300 to 350 STR AL kcmil |
