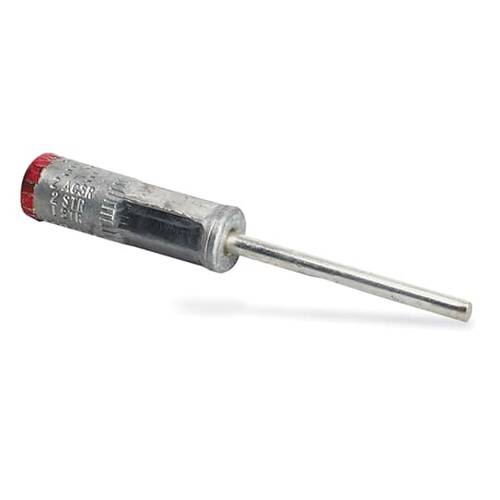

ABB - Installation Products PCS72-6 Comp Sleeve 1-2 Pigtail 0.258x2.5
$8.68
ABB - Installation Products #: PCS72-6
SKU: ABBIPCS72-6
UPC: 783786071227
SKU: ABBIPCS72-6
UPC: 783786071227
| Voltage Rating: | 35 kV |
| Application: | Designed for use in joining Aluminum Secondaries and Services to Copper Transformer Bushings |
| Conductor Size: | #2 ACSR AWG , #1 to #2 STR AWG , 1/0 SOL AWG |
| End Connection: | Compression |
| Finish: | Tinplated Pigtail |
| Insulation: | None |
| Material: | Aluminum Sleeve, Pre-attached Copper Pigtail |
| Mounting: | None |
| Number Of Conductors: | 2 |
| Size: | Sleeve Length 2 inches |
| Special Features: | Sleeves are Highly Conductive Aluminum. Pigtails are Solid Copper, Tin-Plated. Installed with Standard Tools and Dies. Prefilled with Oxide Inhibitor |
| Type: | Pigtail Compression Sleeve |
