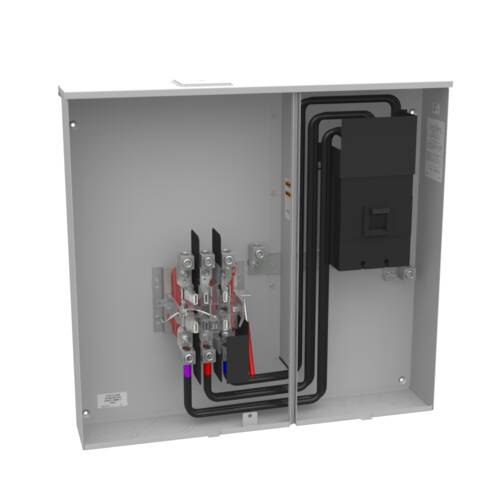

Milbank U6229-X-400-K7L-BLG METER-MAIN 320A HD 79949
$0.00
Milbank #: U6229-X-400-K7L-BLG
SKU: MILBU6229-X-400-K7L-BLG
UPC: 784572799493
SKU: MILBU6229-X-400-K7L-BLG
UPC: 784572799493
| Barrel Lock Provision: | 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision |
| Cable Entry: | Overhead or Underground |
| Enclosure: | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating: | 60 Hertz |
| Mounting: | Surface Mount |
| Jaw Quantity: | 7 Terminal |
| Application: | Meter Socket With Main |
| Number Of Cutouts: | 1 |
| Insulation: | Glass Polyester |
| Amperage Rating: | 320 Continuous Ampere |
| Line Side Wire Range: | 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil |
| Bypass Type: | Lever Bypass |
| Hub Opening: | Large Closing Plate |
| Equipment Ground: | 2 Barrel Ground Lug |
| Cutout Size: | One 400 Ampere Main Breaker |
| Load Side Wire Range: | Two 3/0 AWG - 500 kcmil |
