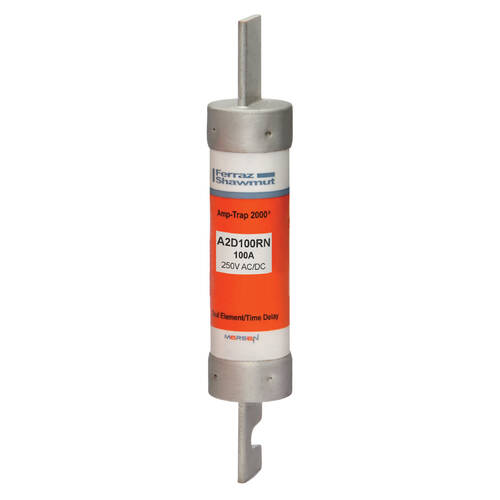

Mersen A2D100RN Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 100A Blade
$35.66
Mersen #: A2D100RN
SKU: MERSA2D100RN
UPC: 782001505769
SKU: MERSA2D100RN
UPC: 782001505769
| Connection Material: | Tin-Plated Copper |
| Body Material: | PolyTube |
| AC Voltage Rating: | 250 V |
| Connection: | Blade |
| Interrupt Rating: | 200 kA |
| Mounting: | Clip |
| Special Features: | Non-indicating or Solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely |
| Standard: | UL listed to standard 248-12 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.12 |
| Type: | Class RK1 |
| Application: | Motors Safety switches Transformers Branch circuit protection Disconnects Control panels All general-purpose circuits |
| Class: | Class RK1 |
| Amperage Rating: | 100 A |
| Size: | 5.88 x 1.06 in |
