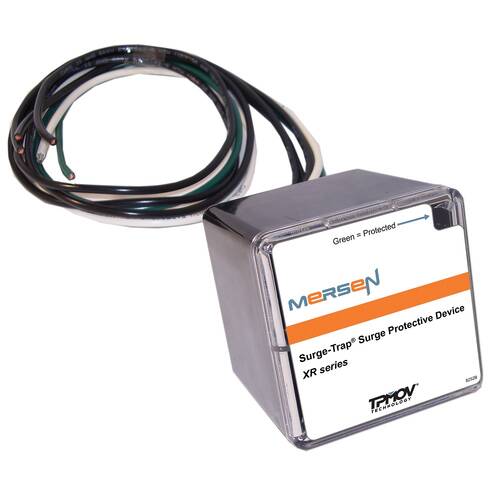

Mersen STXR120V3Y50N 208Y/120V 3P 4W + N-G PROTECT
$0.00
Mersen #: STXR120V3Y50N
SKU: MERSSTXR120V3Y50N
UPC: 782001446215
SKU: MERSSTXR120V3Y50N
UPC: 782001446215
| Voltage Rating: | 120/208 VAC |
| Short-Circuit Rating: | 200 kA |
| Type: | Surge-Trap Type 1 & 2 |
| Type of Indicators: | LED |
| Application: | AC Distribution Power supplies Drive Protection Fire Alarms Control Panels Telecommunications Residential IT / Data centers |
| Special Features: | UL 1449 Third Edition Listed,Type 1 SPD Can be installed line-side or load-side of main disconnect 20kA Nominal discharge current 200kA SCCR (most models) UL 96A Lightning Protection Master Label compliant (@20kA, In) Large block 50kA TPMOV®, |
| Standard: | UL 1449 Third Edition File VZCA.E210793 IEC 61643 CE ANSI/IEEE C62.41 Burn-In tested prior to shipment UL 96A lighting protection master label (Most Models) |
| Mounting: | Din Rail / Panel / Bracket |
