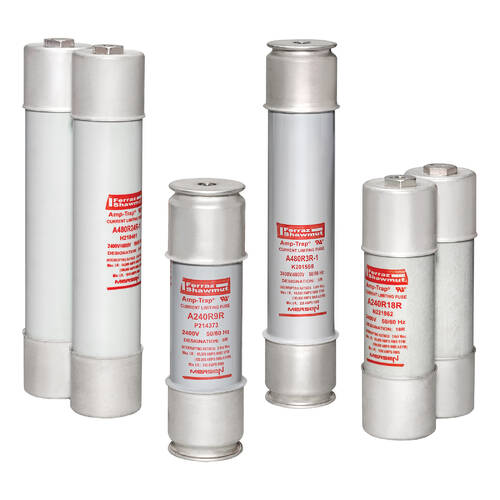

Mersen 9F60NLD836 R-Rated MV Fuse 5080VAC 36R Mounting: Ferrule Style: NLD Visual Indicator
$5,392.65
Mersen #: 9F60NLD836
SKU: MERS9F60NLD836
UPC: 782001396367
SKU: MERS9F60NLD836
UPC: 782001396367
| AC Voltage Rating: | 5080 V |
| Connection Material: | Silver-Plated Copper |
| Family Code: | 142 |
| Family Description: | Med Voltage R Rated |
| Body Material: | Epoxy |
| Type: | Back-Up R-Rated Ferrule Mount Fuses for Motor Protection |
| Connection: | Ferrule |
| Interrupt Rating: | 50 kA |
| Mounting: | Clip |
| Application: | Short circuit protection of medium voltage motors and motor controllers |
| Response Time: | R-Rated |
| Type Of Indicators: | Visual Indicator |
| Voltage Rating: | 5080 VAC |
| Standard: | Amp-Trap: UL File E93367 9F60: UL File E191980 |
| Special Features: | The Amp-Trap and 9F60 R-Rated fuses are UL Recognized Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting |
| Material: | clips |
| Size: | 19.2 x 4 in |
| Amperage Rating: | 36 R |
