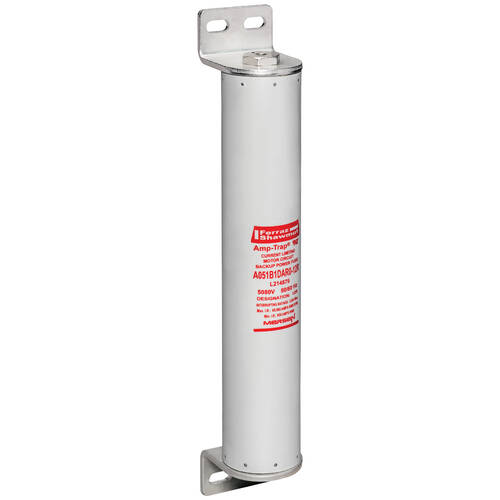

Mersen A072B2D0R0-32R R-Rated MV Fuse 7200VAC 32R Mounting: Bolted Style: D0R0 Visual Indicator
$7,853.51
Mersen #: A072B2D0R0-32R
SKU: MERSA072B2D0R0-32R
UPC: 782001343262
SKU: MERSA072B2D0R0-32R
UPC: 782001343262
| Body Material: | GMG |
| Connection Material: | Silver-Plated Copper |
| Type: | Back-Up R-Rated Bolt-On Fuses for Motor Protection |
| AC Voltage Rating: | 7200 V |
| Application: | Short circuit protection of medium voltage motors and motor controllers |
| Connection: | Bolted |
| Interrupt Rating: | 65 kA |
| Mounting: | Bolted |
| Standard: | UL Recognized File E93367 |
| Type Of Indicators: | Visual Indicator |
| Special Features: | The Amp-Trap Bolt-in series are UL Recognized Bolt-in mounting for direct connection to bus or terminals Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Blown-fuse indicato |
| Voltage Rating: | 7200 VAC |
| Size: | 21.5 x 3 x 7.63 in |
