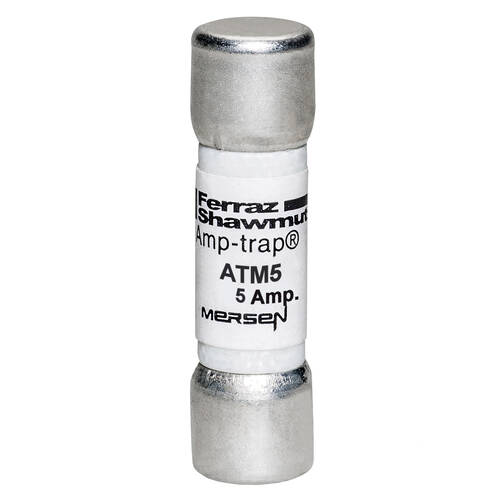

Mersen ATM5 Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 5A Ferrule
$16.32
Mersen #: ATM5
SKU: MERSATM5
UPC: 782001900755
SKU: MERSATM5
UPC: 782001900755
| Body Material: | GMG |
| AC Voltage Rating: | 600 V |
| Connection Material: | Tin-Plated Copper |
| DC Voltage Rating: | 600 V |
| Class: | Midget |
| Connection: | Ferrule |
| Mounting: | Clip |
| Amperage Rating: | 5 A |
| Type: | Midget Fuses |
| Voltage Rating: | 600 VAC |
| Size: | 1.5 x 0.41 in |
| Application: | Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R. |
| Interrupt Rating: | 100 kA |
| Special Features: | For supplemental protection of small motors and transformers Extended ratings for special protection of capacitors and circuits with high inrush currents 600VDC ratings for a wide variety of applications including photovoltaic and solar applications. Can |
| Standard: | UL listed to standard 248-14 (1/10 to 30A) File E33925 DC Listed to UL Standard 248-14 (1/10 to 30A) CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A) |
