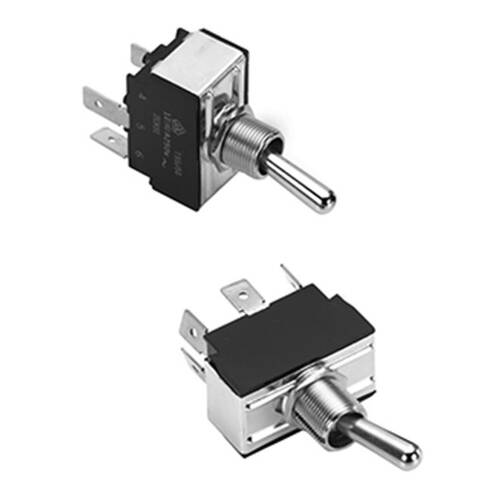

McGill 01210011N TGL SW DPDT 1/4 QC TERM ON -- ON
$20.48
McGill #: 01210011N
SKU: MCGI01210011N
UPC: 036283000956
SKU: MCGI01210011N
UPC: 036283000956
| Actuator: | Toggle |
| Size: | 1.31 Long x .75 Wide IN |
| Voltage Rating: | 125 Vac |
| Action: | Maintained |
| Application: | Marine, food service, generator, industrial control and office automation markets |
| Special Features: | Appropriate for use in low voltage Vdc applications. Base: phenolic, Bat handle: Nickel Plated Brass, Bushing: Nickel Plated Brass |
| Standard: | UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant |
| Type: | 0121/0140 Series Multi-Pole Toggle Switches |
| Amperage Rating: | 15 Amps |
| Number Of Poles: | DPDT |
| Contact Configuration: | ON -- ON |
| Connection: | 1/4" Quick Connect Terminal |
