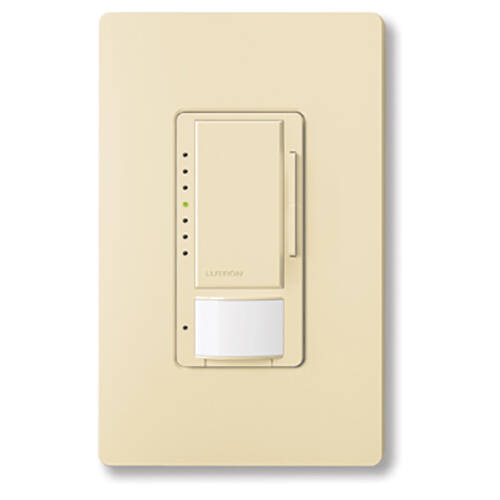

Lutron MRF2S-8SD010-IV MAESTRO RF 434MHZ 8A 0-10V OCC IV
$165.55
Lutron #: MRF2S-8SD010-IV
SKU: LUTRMRF2S-8SD010-IV
UPC: 784276262187
SKU: LUTRMRF2S-8SD010-IV
UPC: 784276262187
| Operating Temperature: | 32 to 104 F |
| Application: | Lighting Control |
| Body: | Plastic |
| Enclosure: | Plastic |
| Environmental Conditions: | 0 to 90% humidity, non-condensing. Indoor use only. |
| Mounting: | Wallbox |
| Sensing Range: | 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage |
| Supply Voltage: | 120 to 277 |
| Sensor: | Yes |
| Standard: | UL, cUL, Title 20/24 certified |
| Load: | 8 A/0-10VDC |
| Special Features: | Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VD |
| Type: | Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V |
